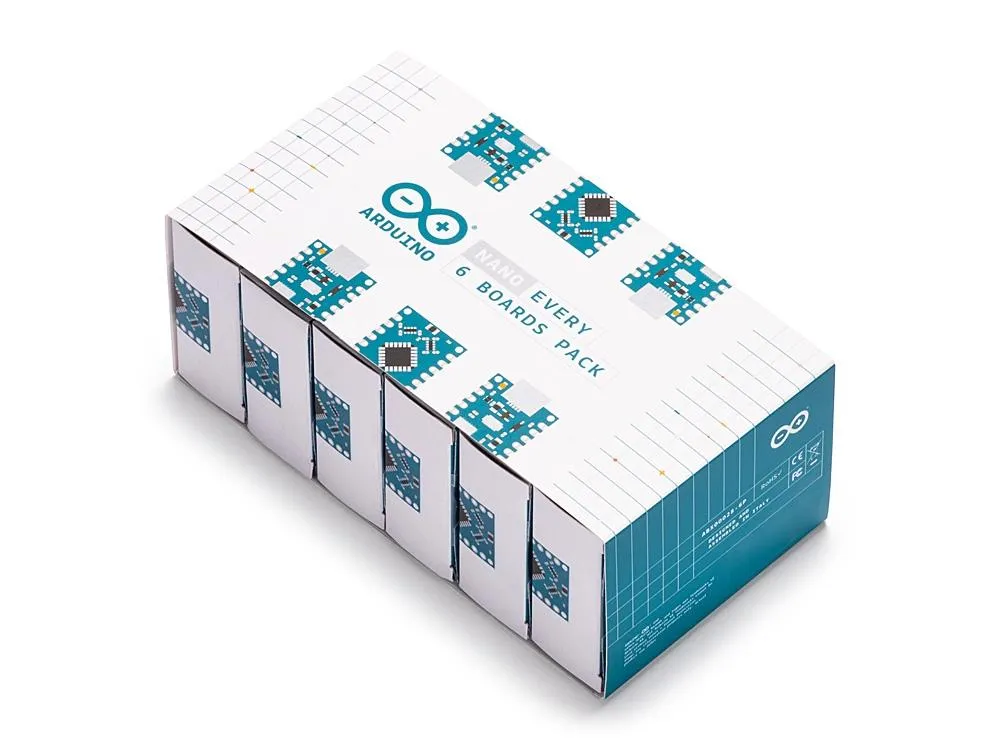

Arduino Nano Every - 6 Boards Pack
Arduino Nano Every - 6 Boards Pack
Title:
  • Localstock
  • Overseasstock

$ 83.47

$ 64.21

Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

Overview

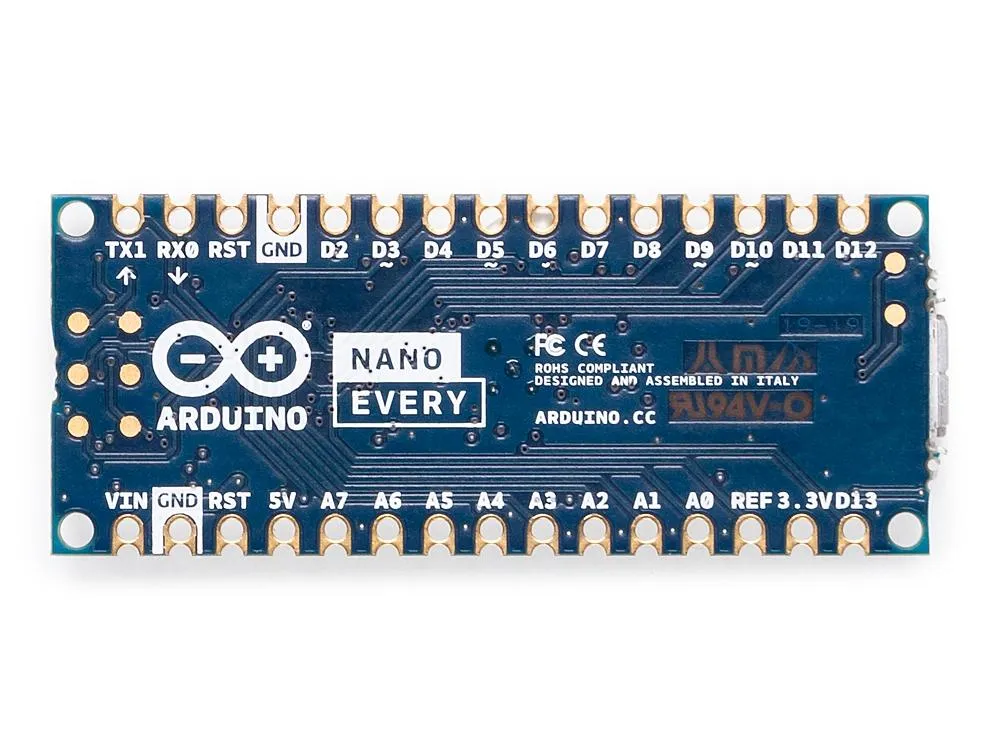

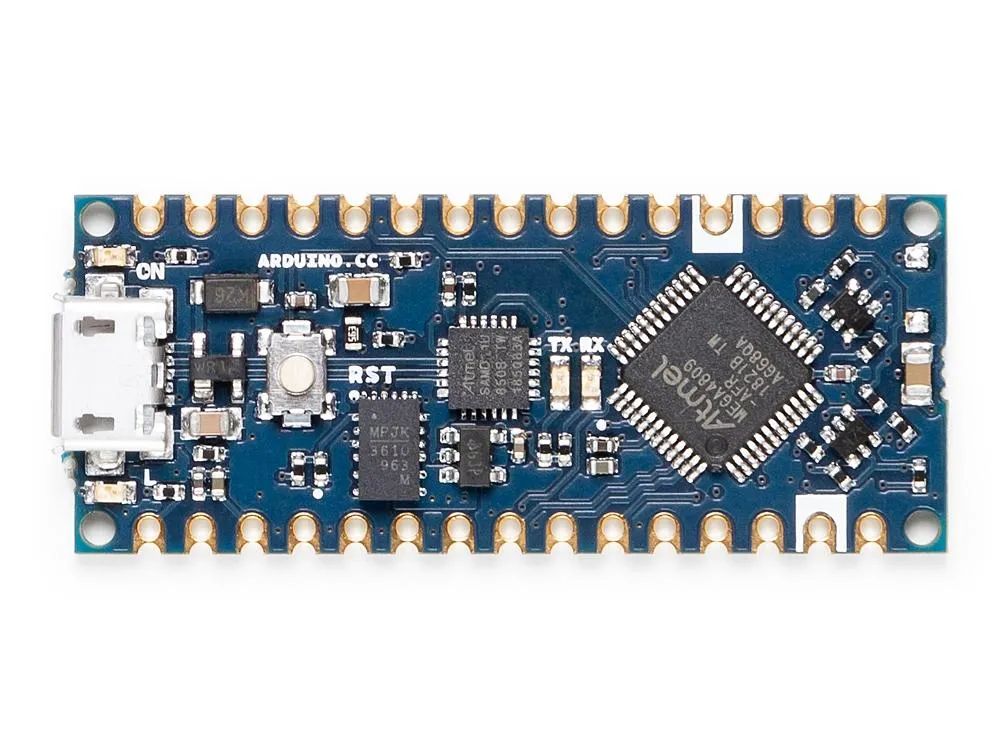

The Nano Every is Arduino’s 5V compatible board in the smallest available form factor: 45x18mm!

The Arduino Nano is the preferred board for many projects requiring a small and easy to use microcontroller board. One example is low cost robotics, where the Nano is broadly used. If you are in the situation of needing many boards for your classroom, or if you need to present a complex prototype with many functional blocks, this pack will offer you exactly what you need: a series of Arduino Nano Every boards at a discounted price.

The Arduino Nano Every is an evolution of the traditional Arduino Nano, but featuring a lot more powerful processor, the ATMega4809. This will allow you making larger programs than with the Arduino Uno (it has 50% more program memory), and with a lot more variables (the RAM is 200% bigger).

The pack is available in two sizes with either 3 or 6 boards of Arduino Nano Every without headers. Whether you want to minimize the size of your prototypes or share the joy of electronics with your friends, this is the best option you will find.

Get to Know More

To know more about the history of the Nano Every , Arduino’s hardware and firmware development manager, who led the development of this board.

Getting Started

 section contains all the information you need to configure your board, use the Arduino Software (IDE), and start tinkering with coding and electronics.

Warranty

You can find  your board warranty information.

The Arduino Nano Every is based on the ATMega4809 microcontroller.

Microcontroller ATMega4809
Operating Voltage 5V
Input Voltage (limit) 21V
DC Current per I/O Pin 20 mA
DC Current for 3.3V Pin 50 mA
Clock Speed 20MHz
CPU Flash Memory 48KB (ATMega4809)
SRAM 6KB (ATMega4809)
EEPROM 256byte (ATMega4809)
PWM Pins 5 (D3, D5, D6, D9, D10)
UART 1
SPI 1
I2C 1
Analog Input Pins 8 (ADC 10 bit)
Analog Output Pins Only through PWM (no DAC)
External Interrupts all digital pins
LED_BUILTIN 13
USB Uses the ATSAMD11D14A
Length 45 mm
Width 18 mm
Weight 5 gr (with headers)

Conformities

The following Declarations of Conformities have ben granted for this board:
GB4943
WEE
RCM
RoHS
CE
FCC
UKCA
For any further information about our certifications please visit

Documentation

OSH: Schematics

The Arduino Nano Every is open-source hardware! You can build your own board using the following files:



Pinout Diagram


Tech specs
